Features

Prevents peak currents damaging battery, ESC, motors, wiring and connectors

Verifies sufficient operating voltage under load

Individual cell balancing.Set cutoff voltages, check battery capacity health

Confirms proper battery charger operation (connect between your battery and charger)

Detect receivers and actual operating current so as to make sure whether an UBEC is needed

Blue backlit LCD display

2x Anderson Style Plug included

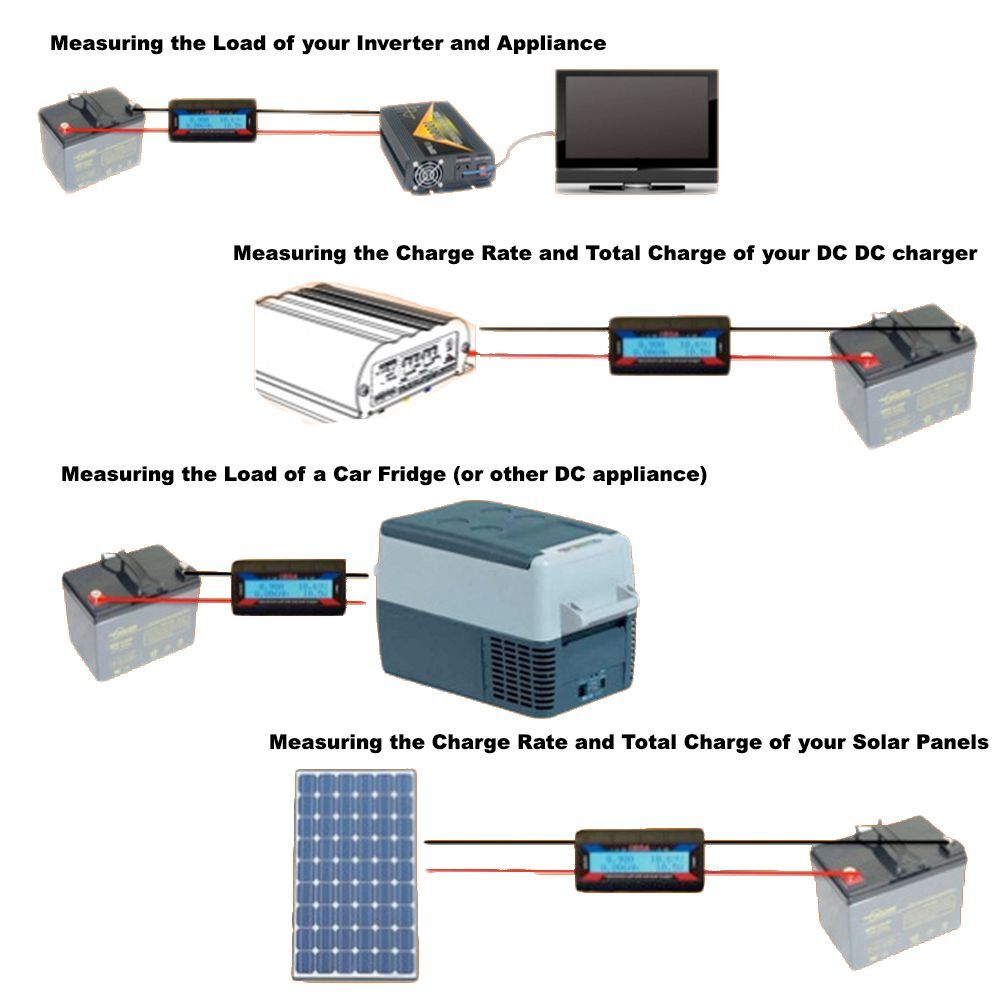

These meters are easily plugged in, in-line, to measure:

Amp Hours(Ah) - Total charge Ah delivered from source to load

Amp Peak (Ap) - Highest amp value delivered (Typically startup cycle for inverters, compressors, fridges etc.)

Amp(A) - Amps being delivered at that point in time

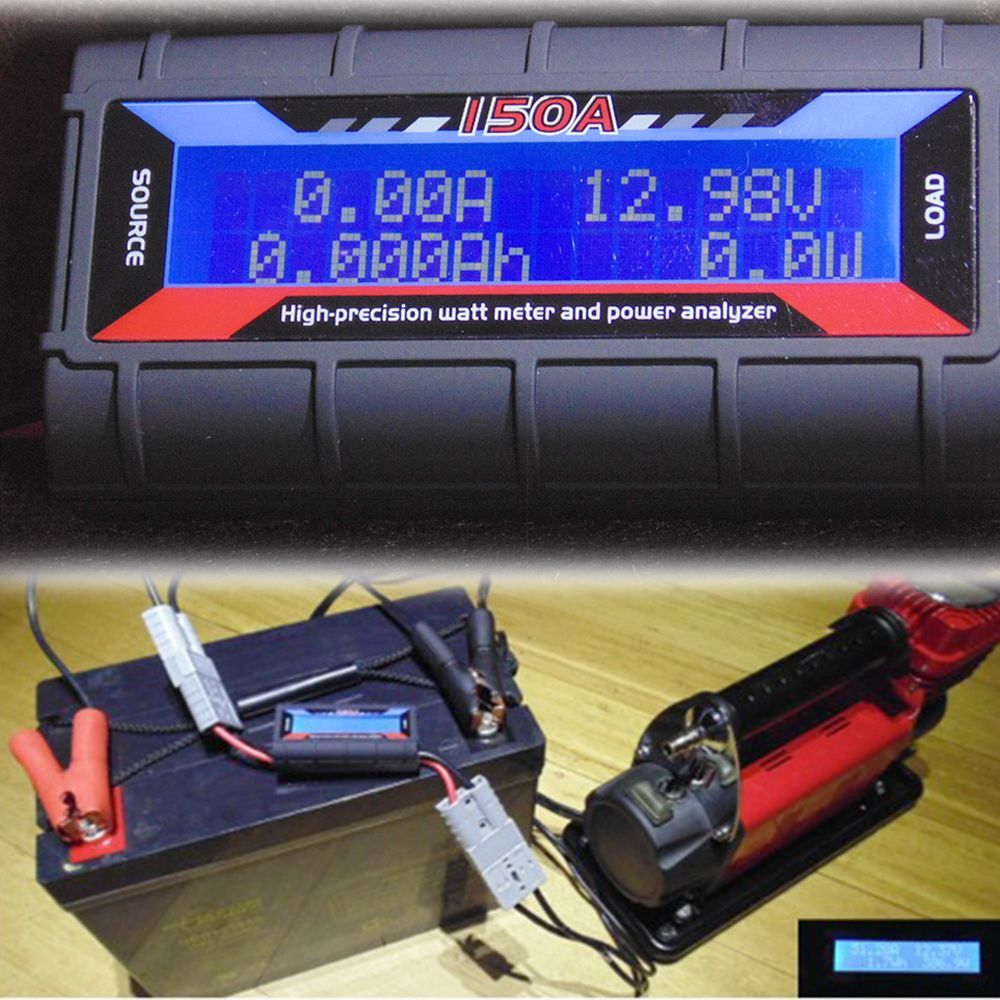

Voltage - Source voltage, and minimum source voltage. Good for measuring voltage at lowest

point of charge -- E.G. Minimum overnight voltage of car fridge battery

Power(Watts) - Peak watts, watts being delivered at that point in time

Specifications

Operates from 4.8-60V

0V with optional auxiliary battery

Measures: 0 to 130 Amps (resolution 0.01A)
Measures: 0 to 60V (resolution 0.01A)
Measures: 0 to 6554W (resolution 0.1W)
Measures: 0 to 65 Ah (resolution 0.001 Ah)
Measures: 0 to 6554 Watt Hours (resolution 0.1 Wh)

Dimensions: 85 x 42 x 25mm

Weight: 85g

Color: Black

Package Content:

1 x Watt Meter and Power Analyzer 150 Amps with 2 Anderson Style Plug

1 x User's Manual

SKU V94-ODR-BAT-CY150AODR-ADS
Brand Does not apply
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.005m
